Size Reduction & Dispersion Technology

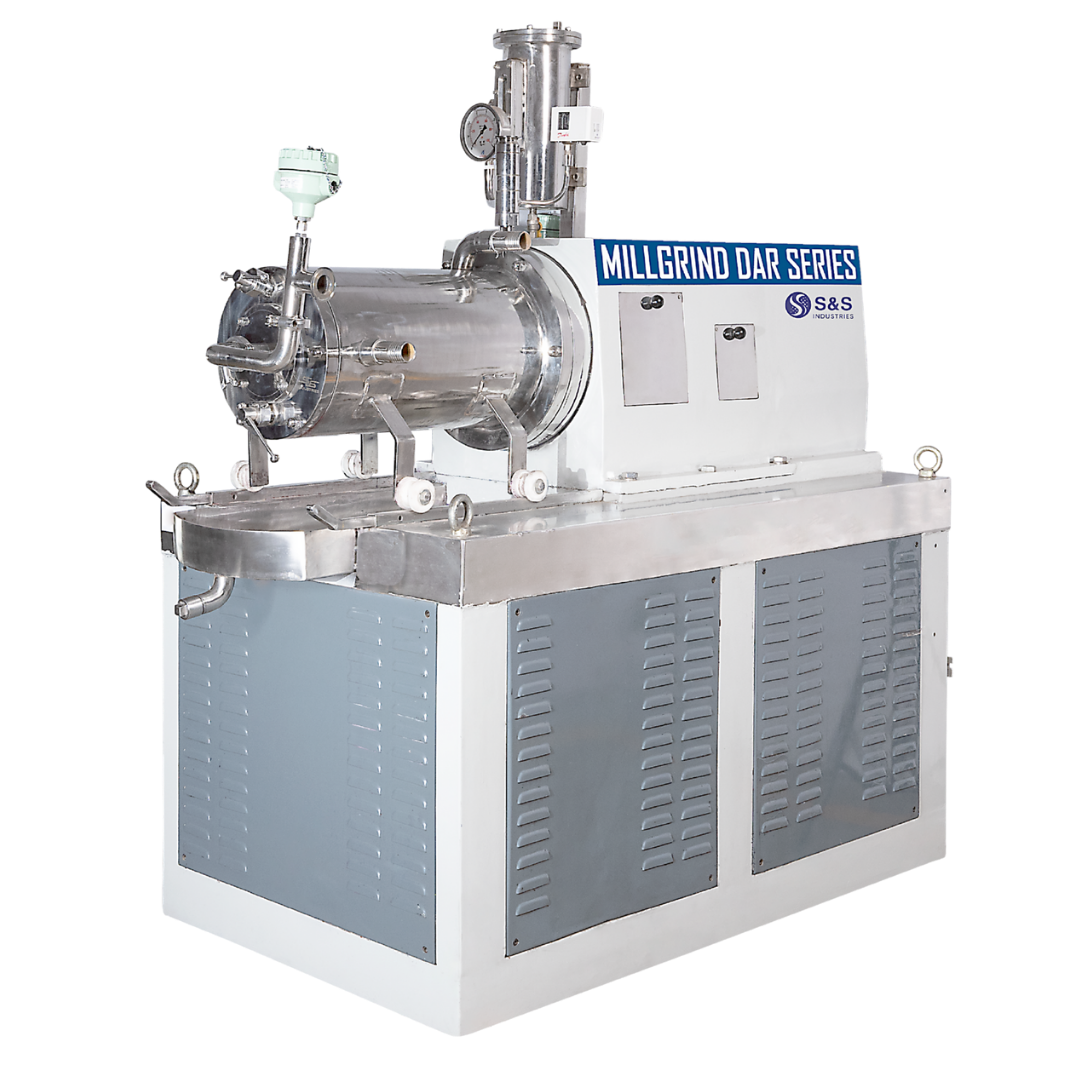

Horizontal Bead Mill- Mill Grind™ DAR Series
Lab to Large scale production
The advanced dynamic centrifugal separation system enables the use of grinding beads with varying densities, tailored to the application. It also supports grinding beads as small as 0.3 mm in diameter. This system ensures that the mill operates well below the critical point of grinding bead compression, even for products with complex rheological properties. The incorporation of advanced high-performance ceramics with excellent thermal conductivity enhances the cooling efficiency of the grinding chamber. Additionally, it offers significantly greater wear resistance than steel, extending the grinding chamber’s service life multiple times
Key Features
- Maximum Productivity – Achieve superior output with optimized performance.
- Energy Efficiency – Minimized specific energy consumption for cost-effective operations.
- Consistent Processing – Significantly reduced residence time variations ensure uniform results.
- Advanced Media Separation – Highly efficient system for seamless grinding media management.
- Reliable Scalability – Smooth transition from lab-scale to full-scale production.
- Enhanced Cooling Efficiency – DAR Series inner pipe ensures optimal temperature control.
- Optimized Recirculation – Designed for efficient and continuous material processing.
Tailor-Made Solutions
With our expertise, we cater to diverse and specialized project requirements by delivering tailored solutions—such as the MILL GRIND™ LAB- H MICRON SERIES —to meet your specific process needs.
Catalouge Download
Discover more about our MILL GRIND™ LAB- H MICRON SERIES bead mill in a compact PDF format—field-proven thousands of times for dispersion and ultra-fine wet grinding
Technical Specifications
| Name | Grinding Chamber Volume (dm³) | Batch Size (l) | Drive Power (kW) | Typical Throughput Rate (kg/h) |
|---|---|---|---|---|
| PILOT SERIES 1.5 | 1.5 | - | - | - |
| DAR 15 | 14 | 50 - 450 | 22 | 35 - 350 |
| DAR 30 | 27 | 100 - 700 | 22 / 30 | 70 - 700 |
| DAR 45 | - | - | - | - |
| DAR 60 | 57 | 200 - 1500 | 45 / 55 | 135 - 1350 |
Note: The data shown are indicative values and depend on the product being processed. Viscosity of the product directly variable to flow rate.
