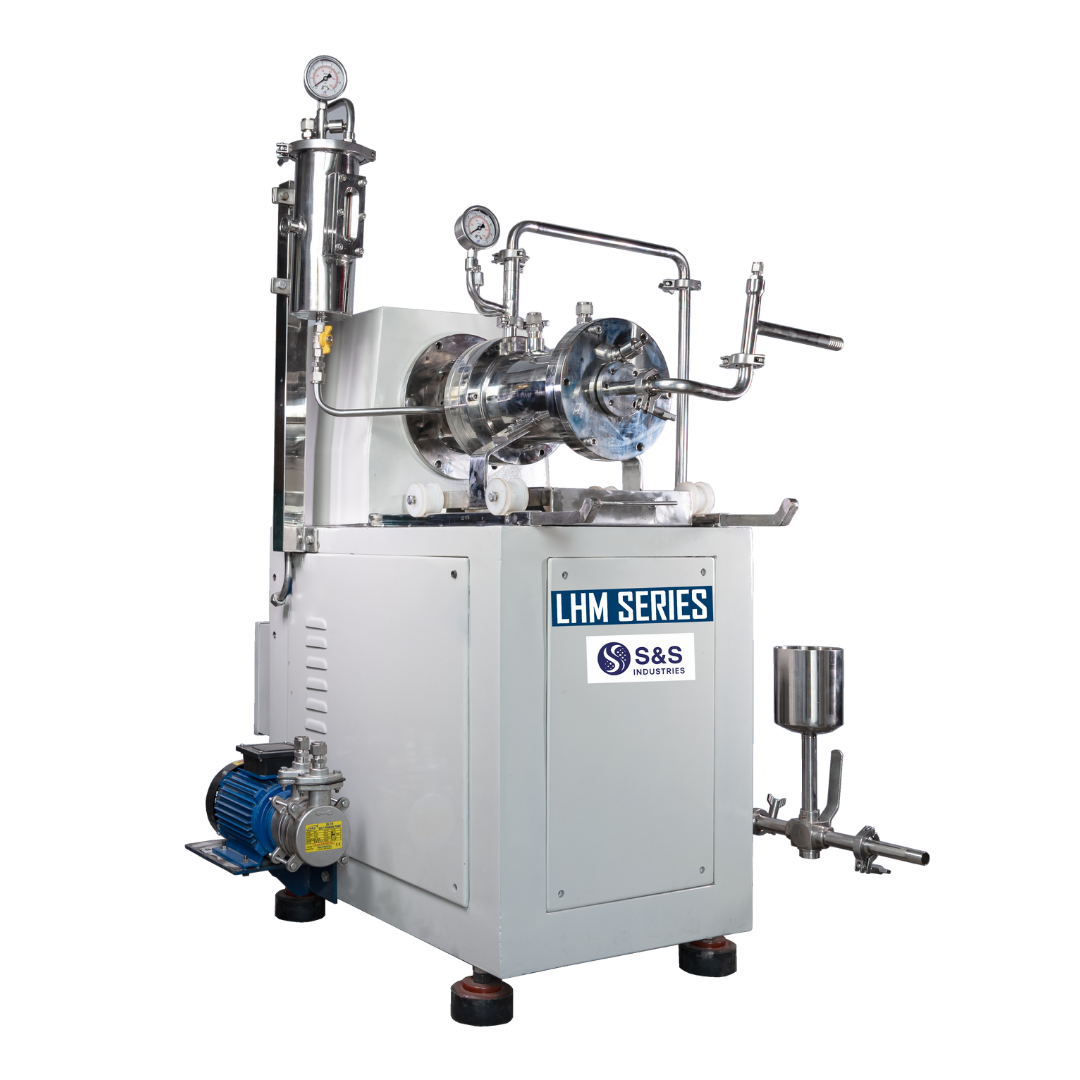

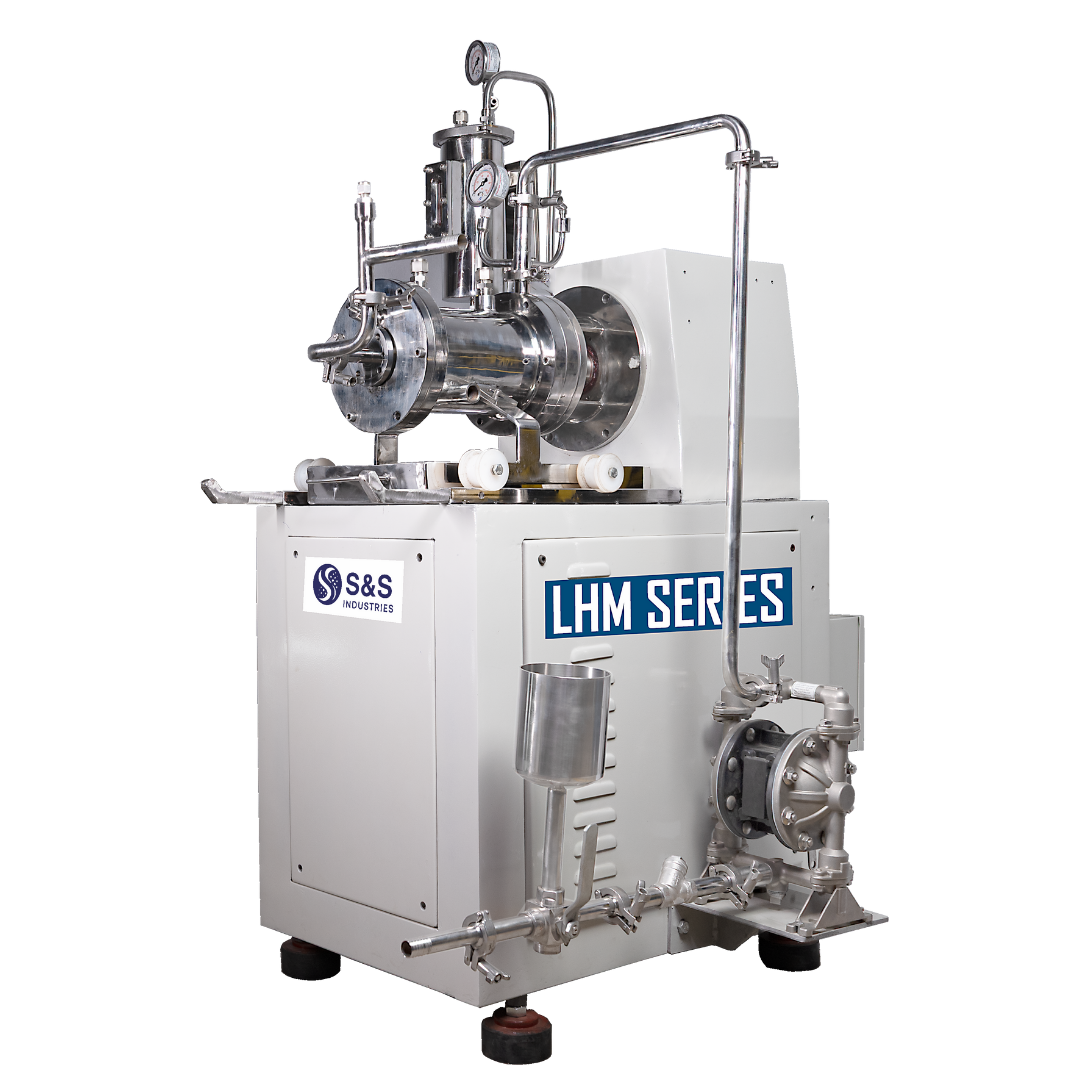

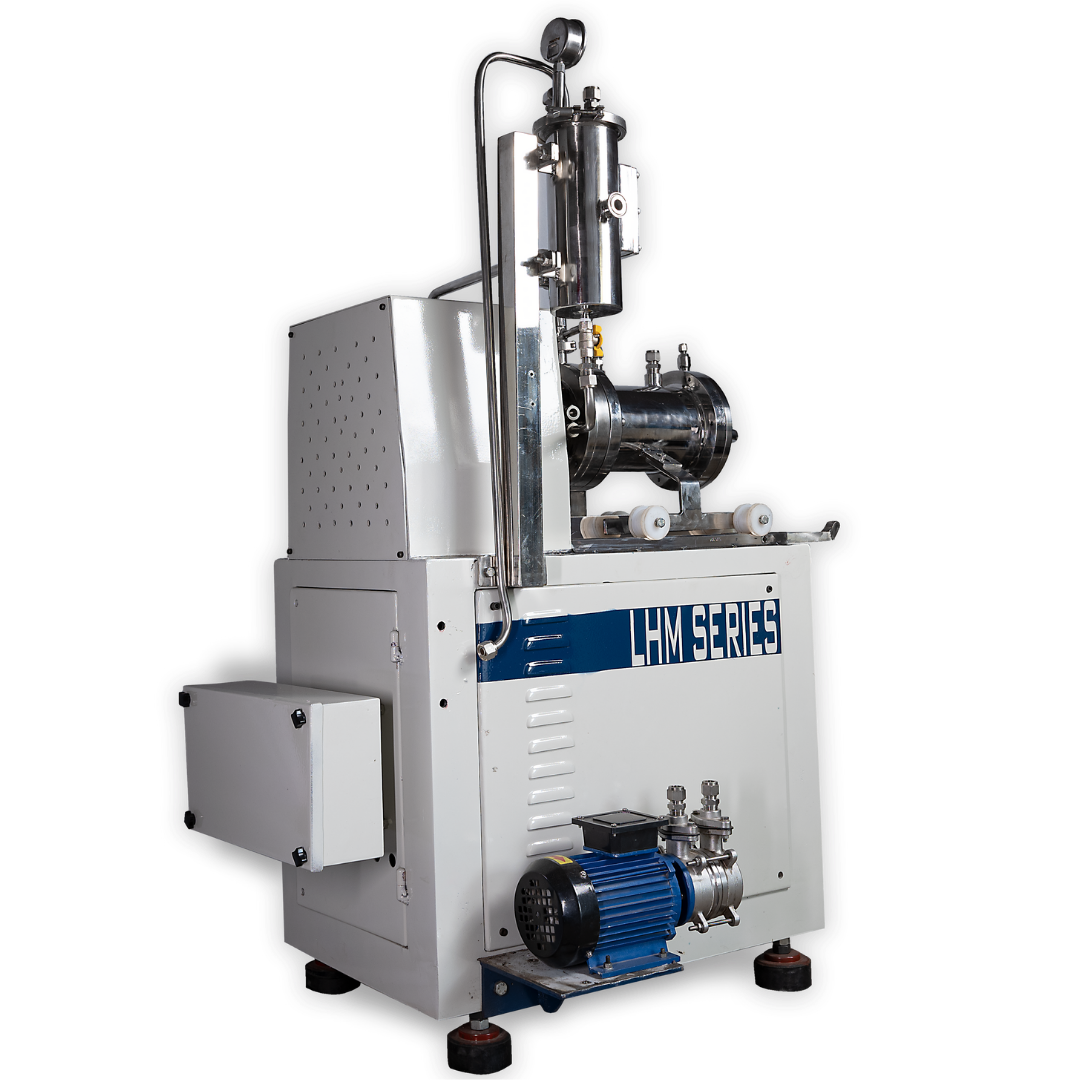

Horizontal Bead Mill - Mill Grind™ Lab- H Micron Series
Powerful Dispersing, Precision Grinding – The Horizontal Bead Mill with High-Speed Agitation and a Durable Steel Chamber
Specifically Engineered For Use In Laboratory Settings
In the horizontal grinding chamber, the specially shaped DISC Series agitator discs are symmetrically arranged on the agitator shaft, efficiently transferring the kinetic energy required for grinding to the grinding media. These disc mills continue to deliver exceptional grinding performance, particularly in passage mode, when combined with the right process parameters. The specific design of each machine model is based on the grinding chamber volume. The MG-DISC Series is available with a screen separation system, ensuring optimal separation efficiency.
Advanced Grinding Chamber System
- Product Inlet
- MILL GRIND-DISC BC (Bead Channel)
- Grinding circuits functioning in opposing directions
- Uniform distribution of grinding media within the active grinding chamber
- MILL GRIND-ROTOR BS (Bead Separation)
- Screen designed for high throughput capabilities
- Product Outlet
Key Features
- Minimized Contamination
The system features a closed design that effectively prevents contamination of the processed material while reducing the risk of operator exposure to hazardous substances. - Efficient Cleaning Process
Engineered for easy disassembly and cleaning, the unit minimizes maintenance time and enhances operational efficiency, ensuring seamless transitions between different processes. - Compact Footprint
Designed with space optimization in mind, the equipment offers a smaller footprint compared to other grinding machines, making it ideal for use in confined laboratory or production environments.
Tailor-Made Solutions
With our expertise, we cater to diverse and specialized project requirements by delivering tailored solutions—such as the MILL GRIND™ LAB- H MICRON SERIES —to meet your specific process needs.
Catalouge Download
Discover more about our MILL GRIND™ LAB- H MICRON SERIES bead mill in a compact PDF format—field-proven thousands of times for dispersion and ultra-fine wet grinding
Technical Specifications
| Type | LHMS 100 | LHMS 1500 |
|---|---|---|
| Grinding Chamber Volume (ml) | 100 | 1500 |
| Funnel Product Volume (ml) | 200–1000 | - |
| Mill Drive (HP) | 2 | 5 |
| Electrical Panel | SS Body with 2 HP VFD, MCBs, Contactors & relay | MS Body with 5 HP VFD, MCBs, Contactors & relay |
| Display | Programmable Temperature Controller & KWH (power consumption) meter | Programmable Temperature Controller & KWH (power consumption) meter |
| R.P.M. | 100 to 5000 | 2800 |
| Cooling | Chilled Water Cooling | Chilled Water Cooling |
| Features | Low Noise Level & High Dispersion | Low Noise Level & High Dispersion |
| Weight | 85 Kg. | ~190 Kg. |
Note: The data shown are indicative values and depend on the product being processed. Viscosity of the product directly variable to flow rate.
