Pigment Testing Equipment

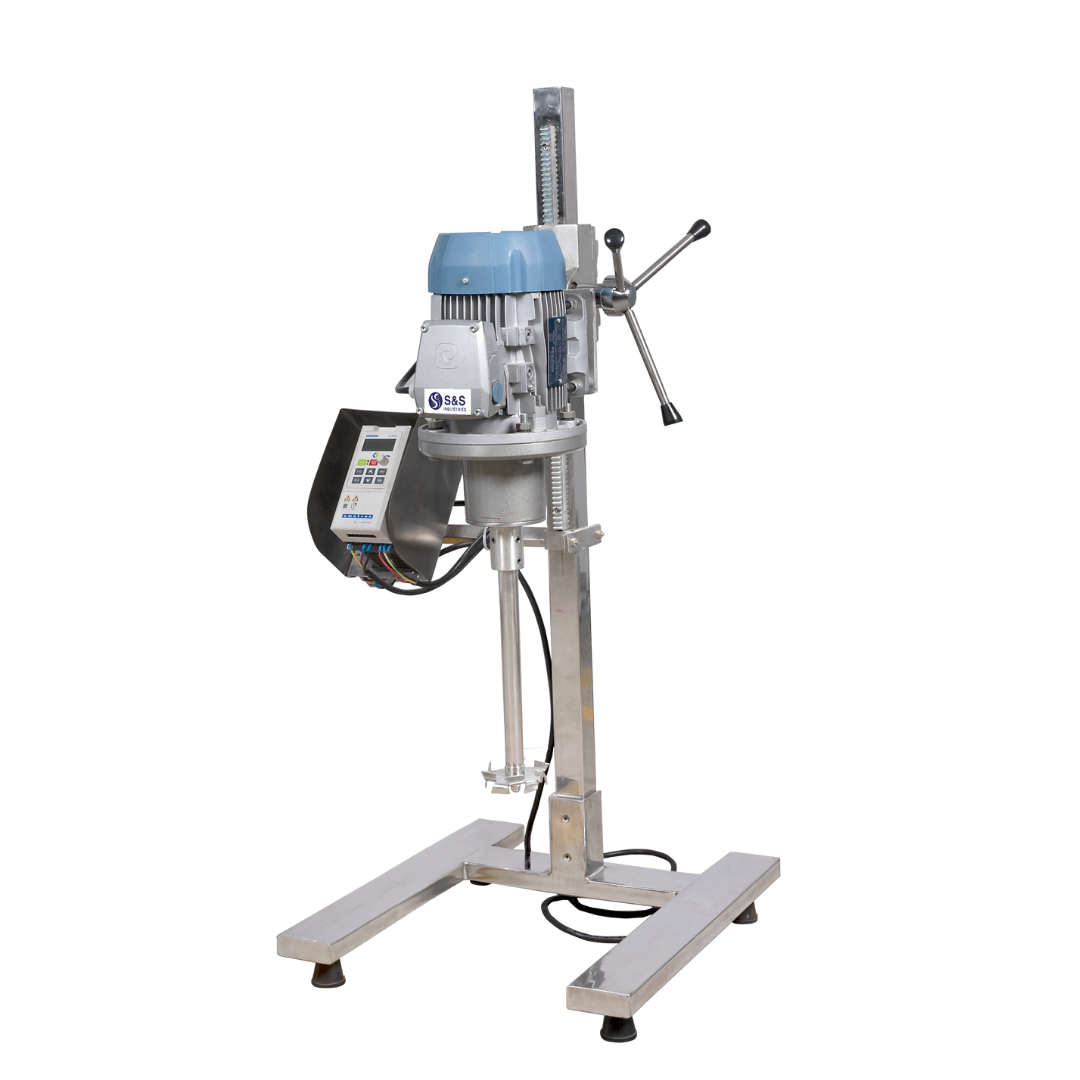

Lab Stirrers- Ls Series
S & S Industries introduces the next generation of laboratory stirrers, designed for efficient stirring and mixing of chemical, pharmaceutical, food, and cosmetic products. Our advanced stirrers feature a robust body, high-precision stainless steel blade, and a sturdy stand, ensuring reliable performance and durability.
S Alient Features Of Bucket & Drown Type Stirrers
- Available in two models – 20L & 40L capacity
- Advanced microprocessor-controlled technology for precise stirring
- Wide speed range: 50 – 3000 rpm for versatile applications
- Real-time monitoring of set & actual speed
- Consistent performance: Maintains constant speed despite load or voltage fluctuations
- High torque at low speeds for efficient mixing
- Precise stirring speed control for optimal results
- Brushless DC motor – Maintenance-free, high torque, and long-lasting
- Easy-to-read backlit LCD displaying set & actual parameters
- Torque & speed display for accurate process monitoring
- Last parameter recall – Ideal for repetitive mixing processes
- Built-in motor protection for continuous overload safety
- Compatible with shafts up to 13mm Ø
- Protection class as per DIN/EN 60529 standards
- Integrated stopper for vessel & shaft protection
- Stable & robust base design for topple-free operation
Enhance your laboratory efficiency with S & S Industries’ high-performance laboratory stirrers!
Tailor-Made Solutions
With our expertise, we cater to diverse and specialized project requirements by delivering tailored solutions—such as the BUCKET & DROWN TYPE STIRRERS —to meet your specific process needs.
Catalouge Download
Discover more about our BUCKET & DROWN TYPE STIRRERS in a compact PDF format—field-proven thousands of times for dispersion and ultra-fine grinding
Technical Specifications
| Features | DS-40 (Drown Series) | BS-20 (Bucket Series) |
|---|---|---|
| Max. Stirring Capacity (Water) [L] | 40 | 20 |
| Motor Rating Input [W] | 120 | 60 |
| Motor Rating Output [W] | 100 | 50 |
| Speed Range [rpm] | 50 – 3000 | 50 – 3000 |
| Speed Display | LCD | LCD |
| Max. Torque [Ncm] | 60 | 40 |
| Torque Display | LCD | LCD |
| Motor Overload Protection | LED light flash, auto stop | LED light flash, auto stop |
| Chuck [mm] | 13 | 13 |
| Stirring Shaft Ø x Length [mm] | 8 x 220 | 8 x 220 |
| Impeller Type / Ø [mm] | 4 Cross Blade / 50 | 4 Cross Blade / 50 |
| Stand Length [mm] | 750 | 750 |
| Weight [kg] | 2.4 | 2.4 |
| Power [W] | 130 | 70 |
| Protection Class (DIN/EN 60529) | IP 42 | IP 42 |
| Power Supply | 220-240V, 50Hz, Single Phase | 220-240V, 50Hz, Single Phase |
Note: The data shown are indicative values and depend on the product being processed. Viscosity of the product directly variable to flow rate.
