Size Reduction & Dispersion Technology

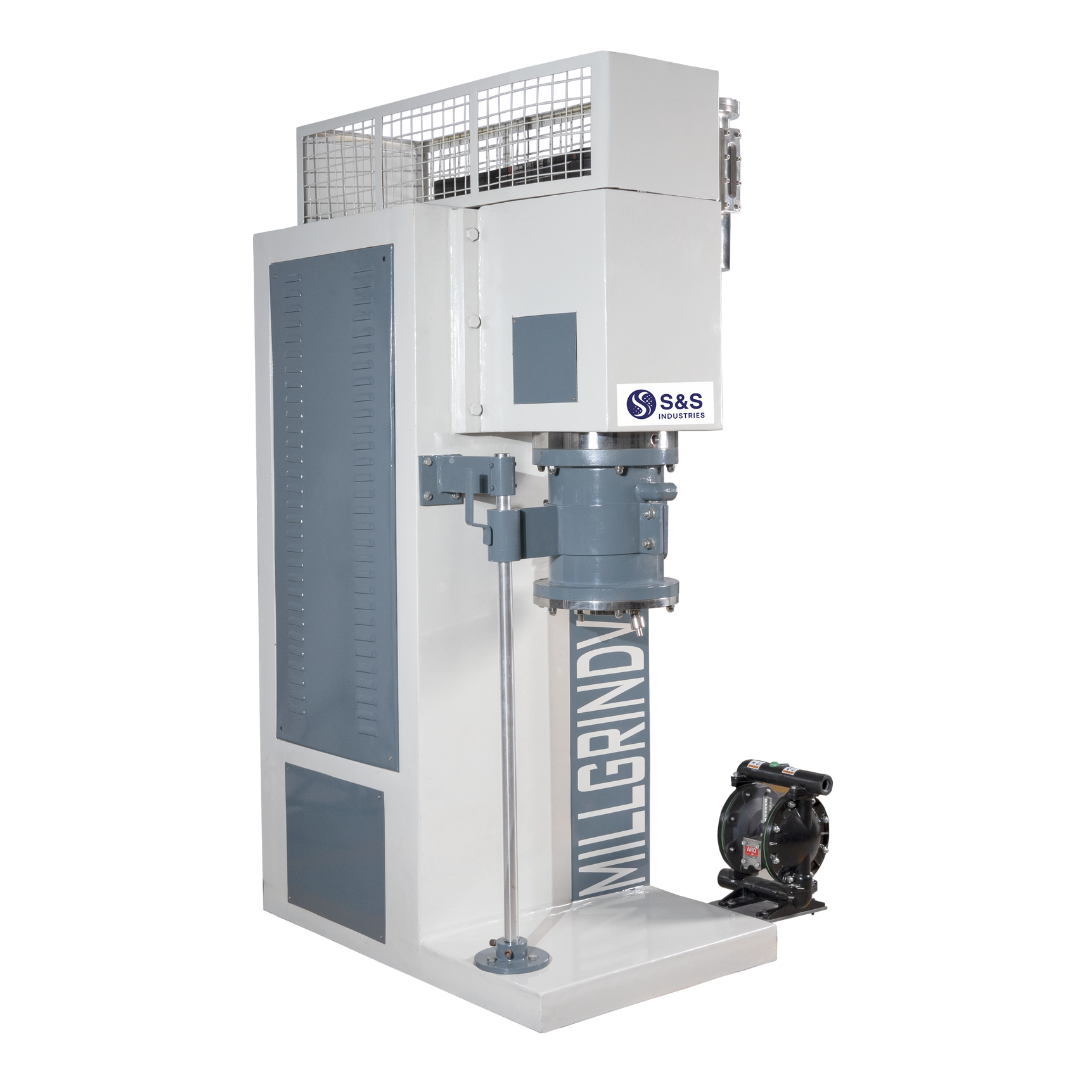

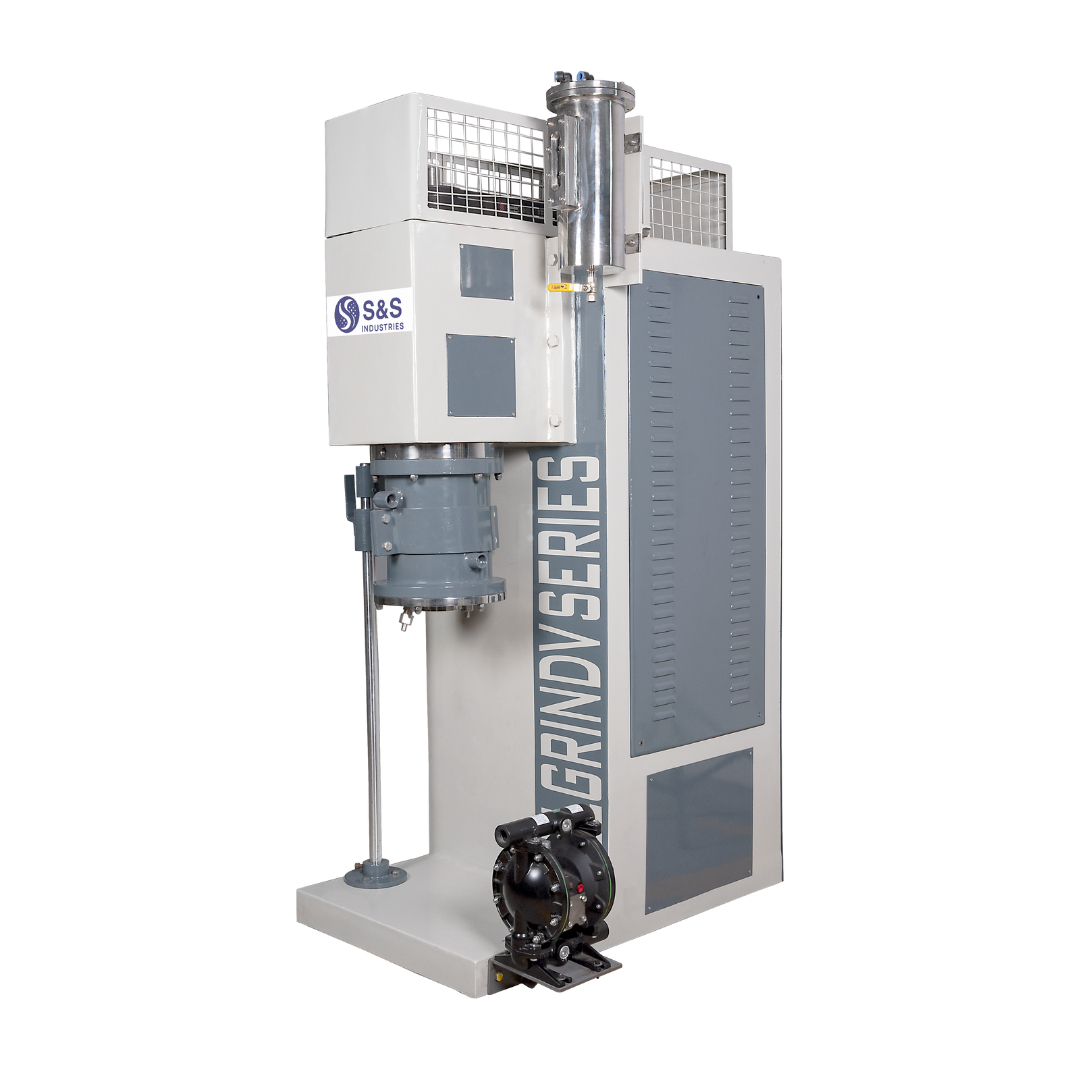

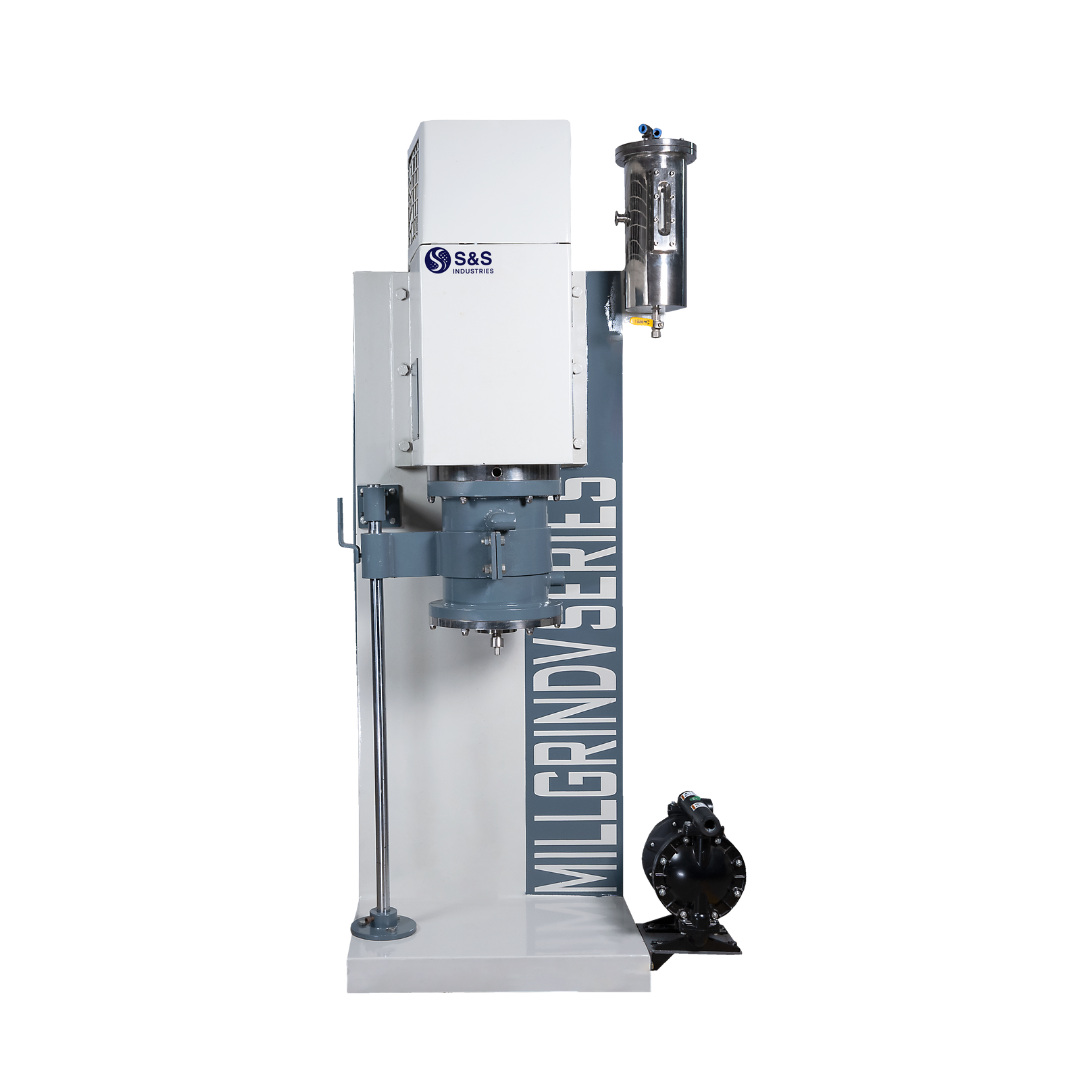

Vertical Bead Mill - Mill Grind™ V Series
The operation of the Vertical Bead Mill is straightforward and user-friendly, allowing for quick mastery. Additionally, all maintenance tasks can be performed efficiently and with ease.
Adding grinding media is effortless through the feeding hole without the need for discharge or additional grinding. The protective screen can be removed from the enclosed mill, ensuring convenient maintenance. Minimal cleaning fluid is required for product replacement, reducing downtime. Changing the grinding media is quick and requires minimal effort. The grinding chamber can be easily lowered using an integrated lifting mechanism, allowing it to drop and rotate smoothly along its pivot for efficient operation.
Advantages Of The Vertical Bead Mill
- Achieves ultra-fine grinding
- Versatile for various applications
- Delivers high operational efficiency
Key Features
- Versatile Material Compatibility – Wear parts available in various materials to suit different products.
- Flexible Grinding Media – Supports media sizes ranging from 5 mm to 2.5 mm for precise grinding.
- Superior Cooling Efficiency – Forced cooling water circulation in the outer jacket enables processing of temperature-sensitive materials.
- User-Friendly Design – MILLGRIND DISC Series mills can be easily dismantled for quick configuration changes.
- Intuitive Operation – Simple setup and adjustment of operating parameters for seamless performance.
- Seamless Scalability – Consistent grinding technology ensures smooth scale-up across all MILL GRIND DISC Series
- Cost-Effective Performance – Designed for low operating and maintenance costs, maximizing efficiency and reliability.
Tailor-Made Solutions
With our expertise, we cater to diverse and specialized project requirements by delivering tailored solutions—such as the MILL GRIND™ LAB- H MICRON SERIES —to meet your specific process needs.
Catalouge Download
Discover more about our MILL GRIND™ LAB- H MICRON SERIES bead mill in a compact PDF format—field-proven thousands of times for dispersion and ultra-fine wet grinding
TECHNICAL SPECIFICATIONS OF VERTICAL BEAD MILL
| Model | MGV 10 | MGV 15 | MGV 20 |
|---|---|---|---|
| Power (HP) | 15 | 20 | 30 |
| Media (mm) | 2.0 | 2.0 | 2.0 |
| Capacity (Kg/hr) | 50-100 | 70-150 | 100-180 |
| Volume (L) | 10 | 15 | 20 |
| Weight (kg) | 1500 | 2000 | 2800 |
Note: The data shown are indicative values and depend on the product being processed. Viscosity of the product directly variable to flow rate.
TECHNICAL SPECIFICATIONS OF VERTICAL SAND MILL
| Model | MGV 6 | MGV 15 |
|---|---|---|
| Power (HP) | 25 | 50 |
| Media (mm) | 0.2–2 | 0.2–2 |
| Volume (L) | 6 | 15 |
| Weight (kg) | 600 | 750 |
Note: The data shown are indicative values and depend on the product being processed. Viscosity of the product directly variable to flow rate.
