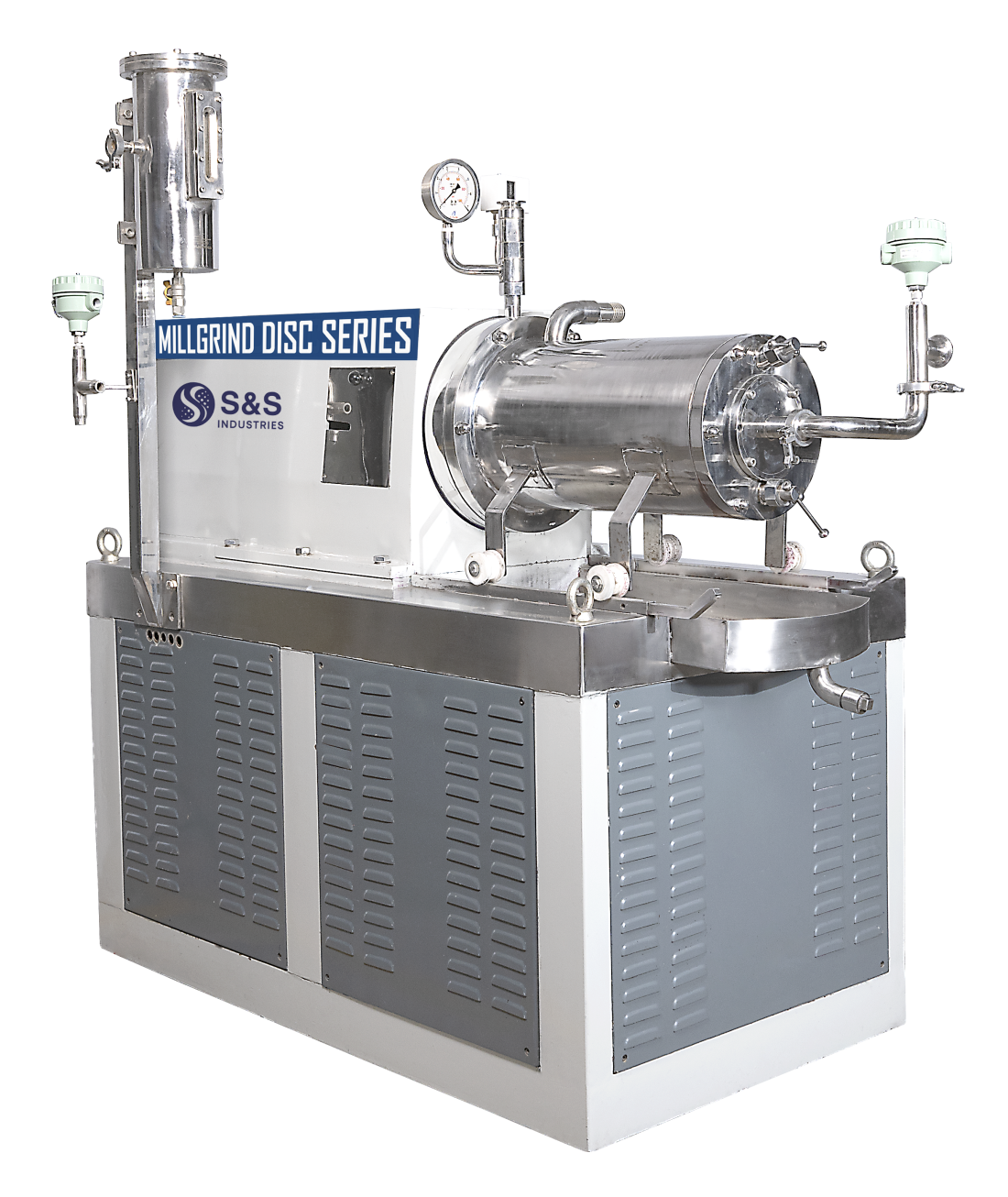

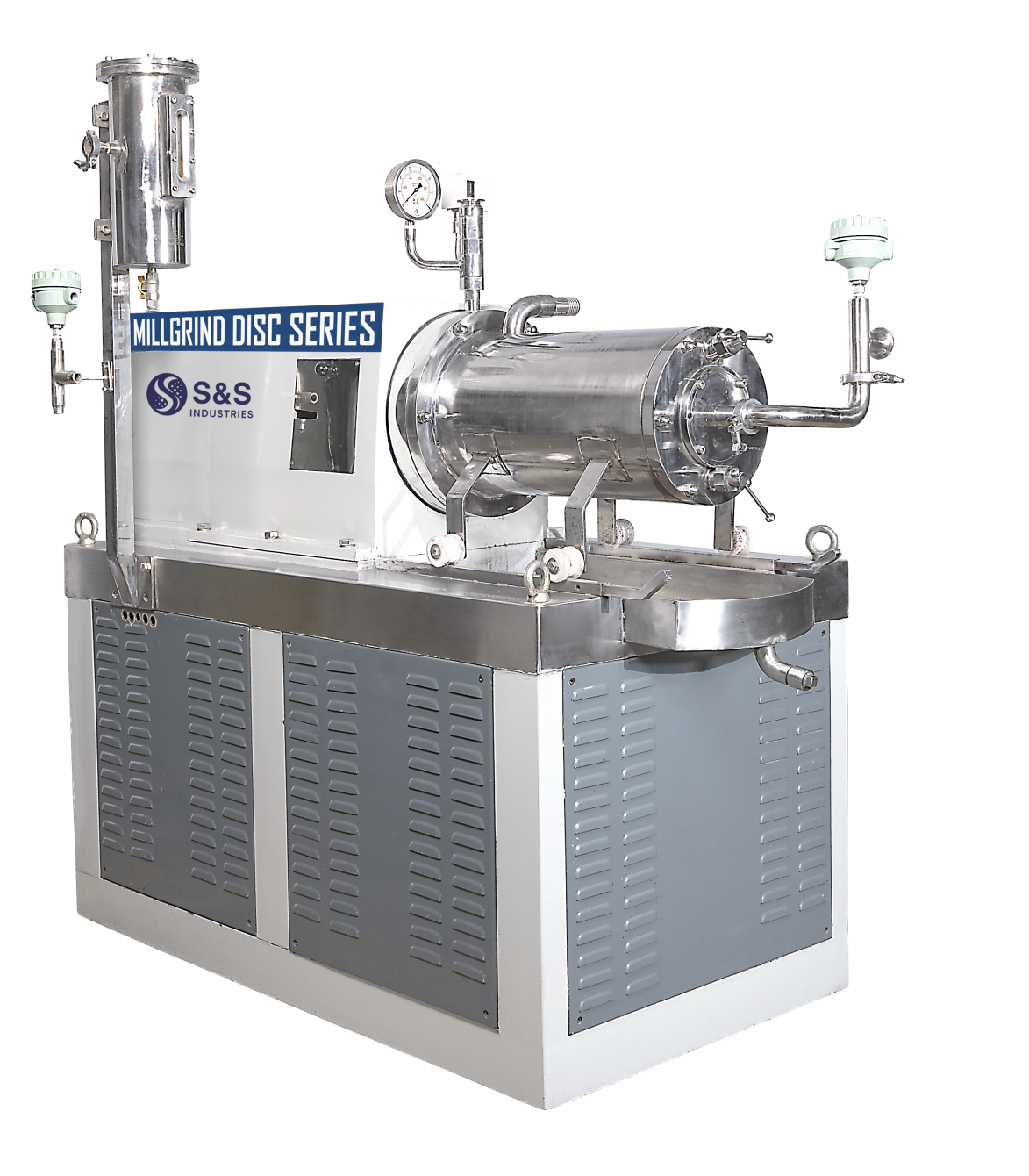

Horizontal Bead Mill - MILL GRIND™ DISC SERIES
The mill is versatile and compatible with a wide range of applications and grinding media materials.
In the horizontal grinding chamber, the specially shaped DISC Series agitator discs are symmetrically arranged on the agitator shaft, efficiently transferring the kinetic energy required for grinding to the grinding media. These disc mills continue to deliver exceptional grinding performance, particularly in passage mode, when combined with the right process parameters. The specific design of each machine model is based on the grinding chamber volume. The MG-DISC Series is available with a screen separation system, ensuring optimal separation efficiency.
Advance Chamber System
- Optimized Product Inlet – Ensures smooth and controlled material flow.
- High-Performance Agitator Discs – Available in various materials for enhanced durability and efficiency.
- Cooling-Optimized Grinding Chamber – Equipped with a replaceable grinding cylinder for extended service life.
- Precision Screen Separator – Effectively separates grinding media from the final product. Easy to replace the screen to try different media size.
- Efficient Product Outlet – Facilitates seamless discharge for consistent processing.
Key Features
- Versatile Material Compatibility – Wear parts available in various materials to suit different products.
- Flexible Grinding Media – Supports media sizes ranging from 5 mm to 2.5 mm for precise grinding.
- Superior Cooling Efficiency – Forced cooling water circulation in the outer jacket enables processing of temperature-sensitive materials.
- User-Friendly Design – MILLGRIND DISC Series mills can be easily dismantled for quick configuration changes.
- Intuitive Operation – Simple setup and adjustment of operating parameters for seamless performance.
- Seamless Scalability – Consistent grinding technology ensures smooth scale-up across all MILL GRIND DISC Series
- Cost-Effective Performance – Designed for low operating and maintenance costs, maximizing efficiency and reliability.
Tailor-Made Solutions
With our expertise, we cater to diverse and specialized project requirements by delivering tailored solutions—such as the MILL GRIND™ DISC SERIES —to meet your specific process needs.
Catalouge Download
Discover more about our MILL GRIND™ DISC SERIES bead mill in a compact PDF format—field-proven thousands of times for dispersion and ultra-fine wet grinding
Technical Specifications
| Model | Grinding Media Separation | Grinding Chamber Volume (L) | Capacity Range (L/h) | Mill Drive (kW) | Cooling Water Throughput (L/h) |
|---|---|---|---|---|---|
| Pilot-1 | Screen | 0.01 | 1–50 | 3.3–4.0 | 250–400 |
| Pilot-2 | Screen | 1.5 | 1–50 | 3.3–4.0 | 250–400 |
| MGDS 15 | Screen | 15 | 70–500 | 17.5–24 | 800–1500 |
| MGDS 30 | Screen | 30 | 100–700 | 24–30 | 800–1500 |
| MGDS 45 | Screen | 45 | 180–1000 | 36–45 | 1800–2500 |
| MGDS 60 | Screen | 60 | 200–1300 | 36–58 | 1800–2500 |
Note: The data shown are indicative values and depend on the product being processed. Viscosity of the product directly variable to flow rate.
